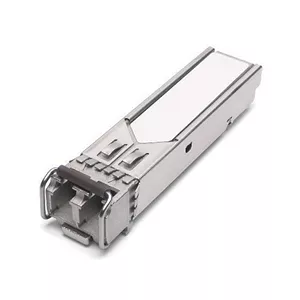

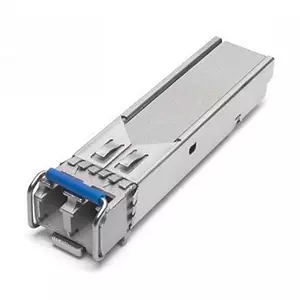

Fast Ethernet RoHS Compliant Long-Wavelength SFP Transceiver

FTLF1217P2xTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with 100Base-FX, FDDI, ESCON, and Multimode SONET OC-3 SR-0 and OC-1 SR-0 standards as specified in IEEE Std 802.32, ISO/IEC 9314-33, Enterprise Systems Architec- ture/3904, and ANSI T1.416.01-19995, respectively. They are RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

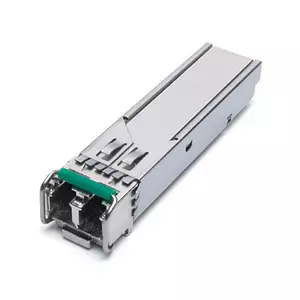

1.25Gb/s RoHS Compliant Long-Wavelength Pluggable SFPTransceiver

FTLF1518P1BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1 . They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.32, and 1x Fibre Channel as defined in FC-PI-4 Rev 8.003,4. The optical transceivers are compliant per the RoHS Directive 2011/65/ EU. See Finisar Application Note AN-2038 for more details. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

2.125 Gb/s RoHS Compliant Short Wavelength 2x5 SFF Transceiver

FTLF8519F2xTL Small Form Factor (SFF) transceivers comply with the 2x5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA)1 . They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and Fibre Channel FC- PI-2 Rev. 7.03. They are RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038.

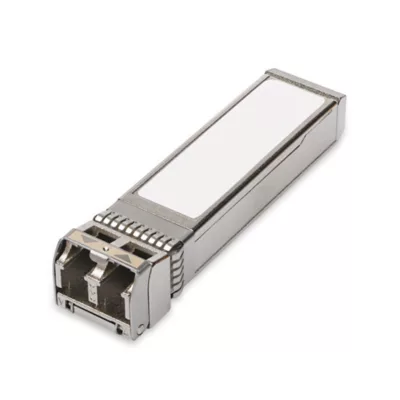

10Gb/s 850nm Multimode Datacom SFP+ Transceiver

FTLX8574D3BxL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-84311, SFF-84322,IEEE 802.3-2012 10GBASE-SR/SW3 and 10G Fibre Channel 1200-Mx-SN-I4. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF_x005F_xFFFE_84725. TheFTLX8574D3BCL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6. See Finisar Application Note AN-20387 for more details.

RoHS-6 Compliant 10Gb/s 10km 1310nm Single Mode Datacom SFP+ Transceiver

FTLX1475D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3ae 10GBASE_ x005F_xFFFE_LR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4. Digital diagnostics monitoring isavailable via a 2-wire serial interface, as specified in SFF-84725 . TheFTLX1475D3BCL employs a limiting receiver. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6 . SeeFinisar Application Note AN-2038 for more details7 .

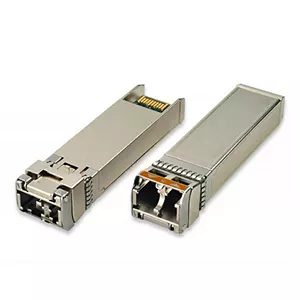

10Gb/s, 40km Single Mode, Multi-Rate SFP+ Transceiver

FTLX1672D3BCL transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 40km of G.652 single mode fiber. They are compliant with SFF-84311 , SFF-84322 and 10GBASE_x005F_ xFFFE_ER/EW; support 4x, 8x and 10x Fibre Channel, as well as CPRI option 2 through 8, over 40km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84723. FTLX1672D3BCL transceivers are RoHS compliant per Directive 2011/65/EU4,5.

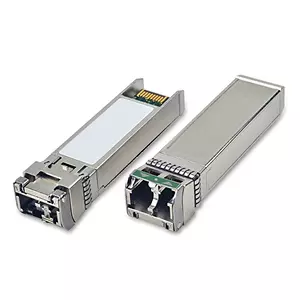

10Gb/s DWDM 80km Multi-Rate Tunable SFP+ Transceiver

FTLX6871MCC andFTLX6872MCC transceivers are Enhanced Small Form Factor Pluggable Tunable SFP+ transceivers designed for use in 10-Gigabit multi-ratelinks up to 80km of G.652 single mode fiber. They are compliant with SFF-84311, SFF_x005F_xFFFE_84322 , SFF-86908, and G.698.1 DS100S1-2Dz(C), and support SONET OC-192, SDH STM-64, 10G Ethernet ZR and 10G Fibre Channel over 80km fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84723. The optical transceiver is compliant per the RoHS Directive 2011/65/EU4. See Finisar ApplicationNote AN-2038 for more details5.

25G Ethernet RoHS Compliant Long Wavelength SFP28 Transceiver

FTLF1436W5BTV SFP28 transceivers are designed for use in Ethernet links up to 25.78 Gb/s data rate and up to 10 km link length. They are compliant SFF-8472 Rev 12.2b and IEEE 802.3cc, and compatible with SFF-8432a and applicable portions of SFF_x005F_xFFFE_8431 Rev. 3.0c. The product is RoHS compliant and lead-free per Directive 2011/96/EUd. See Finisar Application Note AN-2038 for more details.

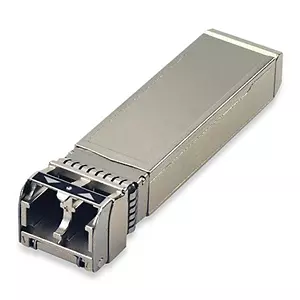

25.78Gb/s 10GE RoHS Compliant Short Wavelength SFP+ Transceiver

FTLF8536W4BTV SFP+ transceivers are designed for use in 25Gb/s data rate over multimode fiber. They are compliant to IEEE802.3by, SFF-8472 Rev 12.2b and SFF-8402g, and compatible with SFF-8432a and applicable portions of SFF-8431 Rev. 4.1c. The transceiver is RoHS compliant and per Directive 2011/65/EUd . See Finisar Application Note AN-2038 for more details.

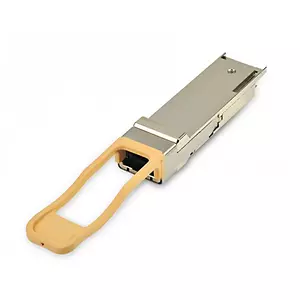

40BASE-SR4 QSFP+ Gen4 Optical Transceiver Module

FTL410QE4C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43 and breakout to 4 10GBASE-SR. Digital diagnostics functions areavailable via an I2C interface, including Tx and Rx power monitoring. The transceiver is compliant per the RoHS Directive 2011/65/EU4. See Finisar Application Note AN-20385 for more details.

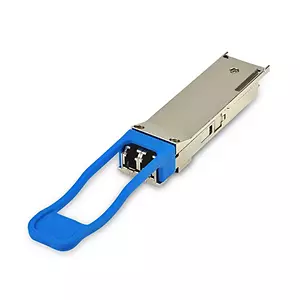

40GBASE-LR4 QSFP+ Optical Transceiver Module

FTL4C1QE3C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-LR43. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU4. See Finisar Application Note AN-2038 for more details5.

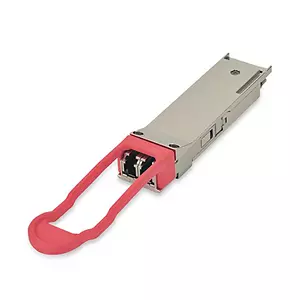

40GBASE QSFP+ Optical Transceiver Module – 40km

FTL4E1QE1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA1 and IEEE 802.3bm 40GBASE-ER42. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5 . See Finisar Application Note AN-2038 for more details4.

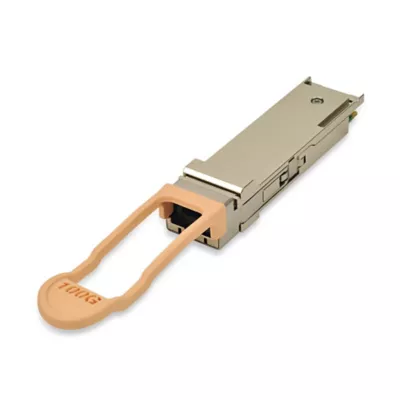

100m Parallel MMF 100G QSFP28 Optical Transceiver

FTLC9555REPM3 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber with extended case temperature range of 0°C to 85°C. They are compliant with the QSFP28 MSA1 and IEEE 802.3bm100GBASE-SR42 and CAUI-42. Digital diagnostics functions are available via the I2Cinterface, as specified by the QSFP28 MSA1 and Finisar Application Note AN-21413. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4and Finisar Application Note AN-20385.

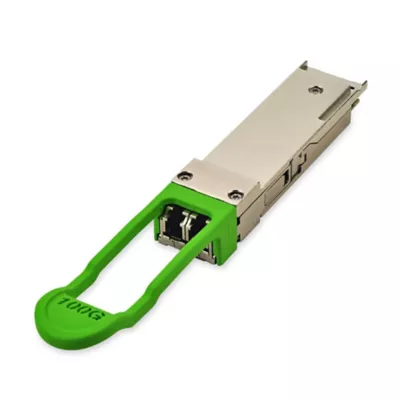

2km 100G CWDM4 QSFP28 Optical Transceiver Module

FTLC1155RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA1, CWDM4 MSA2 and portions of IEEE P802.3bm3. Digital diagnosticfunctions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21534and AN-21545. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU6. See Finisar Application Note AN20387 for more details.

10km 100GBASE-LR4 QSFP28 Optical Transceiver Module

FTLC1154RDPL4 QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. Designed for outside plant applications with an industrial temperature range (-40°C to +85°C), they are compliant with the QSFP28 MSA1, IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm CAUI-43. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21524and AN-21535. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU6. See Finisar Application Note AN_x005F_xFFFE_20387 for more details.

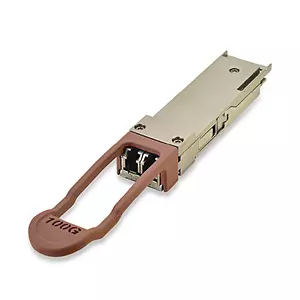

100G 20km eLR4 QSFP28 Optical Transceiver Module(WDM-20)

FTLC1154RDPLC QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 20km of single mode fiber, based on the LAN-WDM wavelength grid. Designed for outside plant applications with an extended temperature range (-20°C to +85°C), they are compliant with the QSFP28 MSA1, IEEE 802.3ba 100GBASE-LR42, 4WDM MSA7, portions of CWDM4 MSA8, and IEEE 802.3bm CAUI-46. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21524and AN-21535. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU6. See Finisar Application Note AN-20387 for more details.

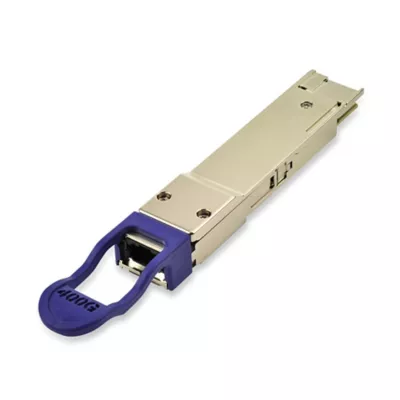

400GBASE-DR4 QSFP-DD Finisar® Transceiver

FTCD4523E2PxM DR4 QSFP-DD transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP-DD MSA, QSFP28 MSA1, PSM4 MSA2 and portions of IEEE P802.3bm6. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-20xx5. The optical transceiver is RoHS compliant as described in Application Note AN-203843,4.

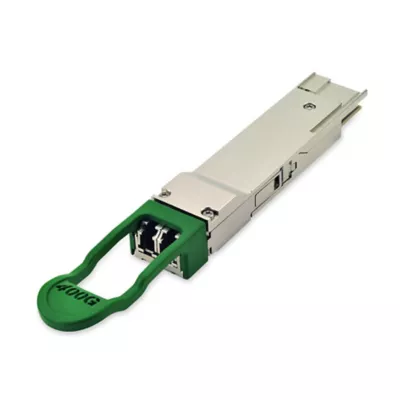

400G-FR4 QSFP-DD Optical Transceiver Module

FTCD4313E2PCL FR4 QSFP-DD transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP-DD1 MSA, QSFP28 MSA2, IEEE P802.3cu6 and portions of P802.3bs7. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-21xx5. The transceiver is RoHS-6 compliant per Directive 2011/65/EU3 and Finisar Application Note AN-20384.

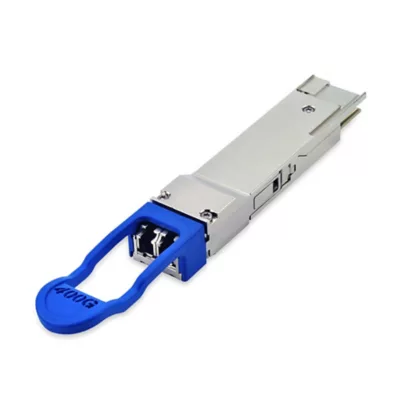

400GBASE-LR4 10km QSFP-DD Finisar® Transceiver

FTCD4323E2PCL LR4 QSFP-DD transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP-DD MSA1, QSFP28 MSA2, 400G-LR4-10 Technical Specification Rev1.0 Sept 15, 20206 and portions of P802.3bs7. Digital diagnostic functions are available via the I2Cinterface, as specified by the QSFP28 MSA and Finisar Application Note AN-21xx5. The transceiver is RoHS-6 compliant per Directive 2011/65/EU3 and Finisar Application Note AN-20384.

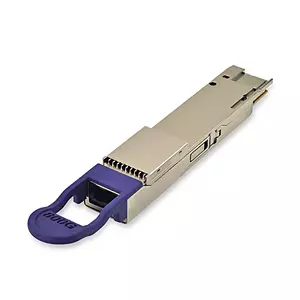

800G DR8 QSFP-DD OPTICAL TRANSCEIVER

FTCE4516E1PxM DR8 QSFPDD-800 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFPDD MSA, IEEE 802.3bs and IEEE P802.3ck. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP-DD MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

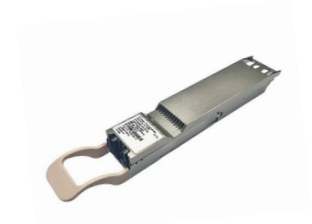

800G (2x400 VR4) OSFP Finisar® Transceiver

FTCE8627E1PCA 2x400G VR4 OSFP transceiver modules are designed for use in 2x400 Gigabit Ethernet or InfiniBand links up to 100m of multi-mode fiber. They are compliant with the OSFP MSA, IEEE802.3db6 and IEEE802.3ck7. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-20382,3.

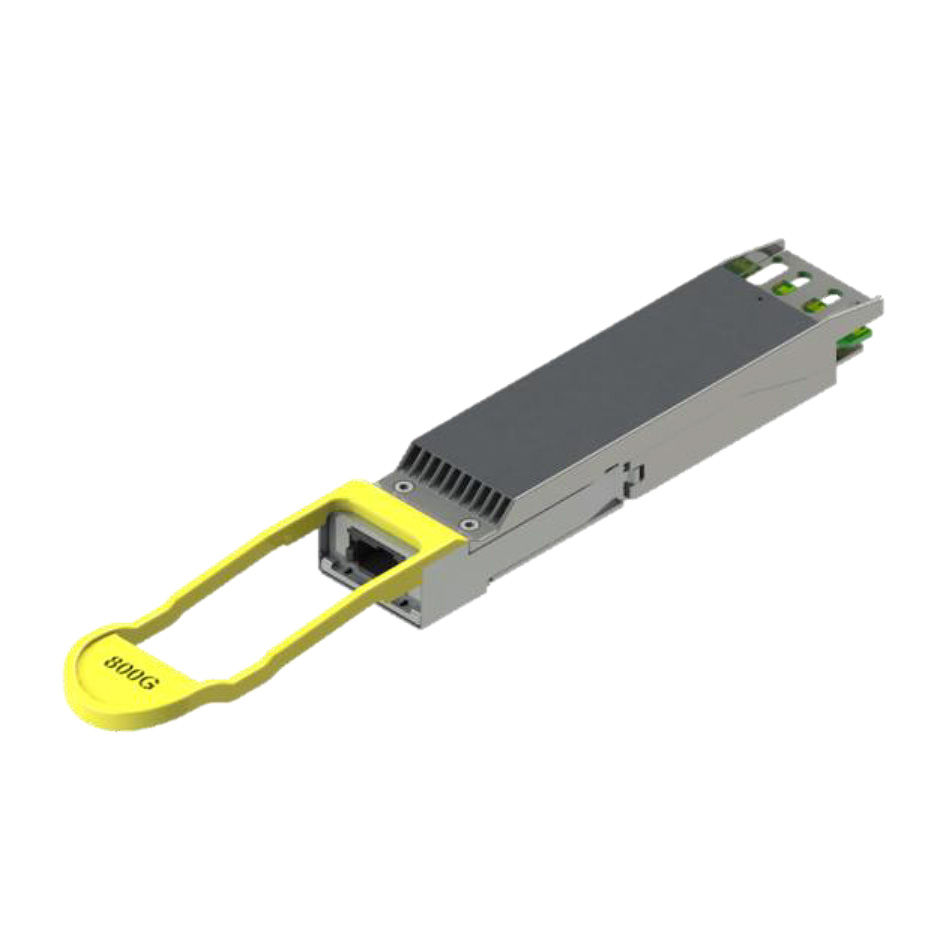

800G-DR8 OSFP Optical Finisar® Transceiver

Finisar’s FTCE4517E1PxM DR8 OSFP transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 500m of single-mode fiber. They are compliant with the OSFP MSA, IEEE 802.3bs6 and IEEE P802.3ck7 Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-20383.
